| color |
white |
| material |
cold-rolled steel sheet, copper, aluminum |

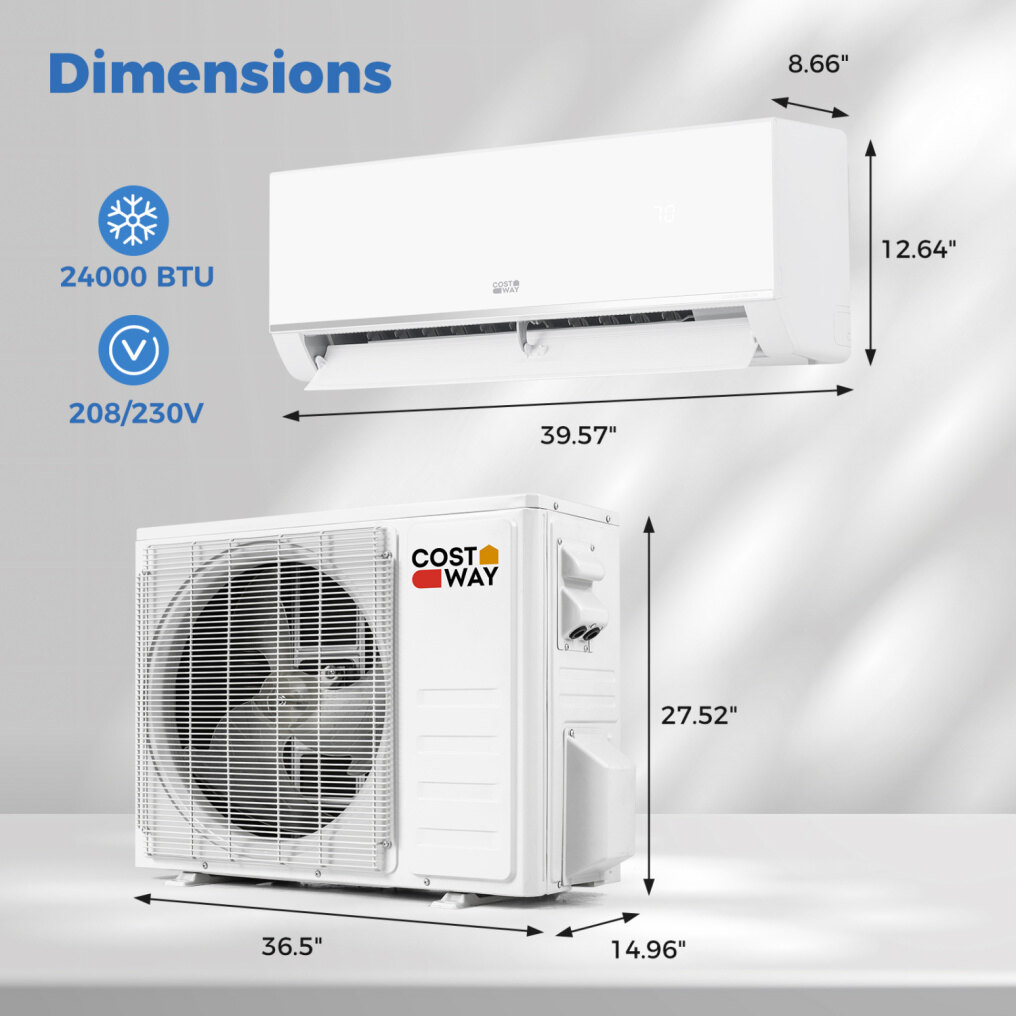

| indoor unit dimensions |
39.57” x 8.66” x 12.64” |
| outdoor unit dimensions |
36.5” x 14.96” x 27.52” |
| voltage |
208/230v |
| frequency |
60hz |
| cooling capacity |
24000 btu |
| heating capacity |
24000 btu |
| rated input consumption (cooling) |
2080w |
| rated input consumption (heating) |
1800w |
| rated current (cooling) |
9.1a |
| rated current (heating) |
7.9a |
| coverage area |
1200 sq.ft. |
| maximum air flow volume |
847 cfm |
| dehumidification capacity |
131.9 pints/day |
| temperature setting range |
60℉~88℉ |
| operating ambient temperature |
-4℉-122℉ |
| max remote control distance |
26 ft |
| refrigerant |
r32 |
| seer2 |
20 |
| hspf2 |
9.5 |
| indoor noise level |
28 db |
| diameter of gas pipe |
1/2" |
| diameter of liquid pipe |
1/4" |
| net weight of indoor unit |
27.6 lbs |
| net weight of outdoor unit |
93.7 lbs |
| box qty |
2 |
| is assembly required |
yes |

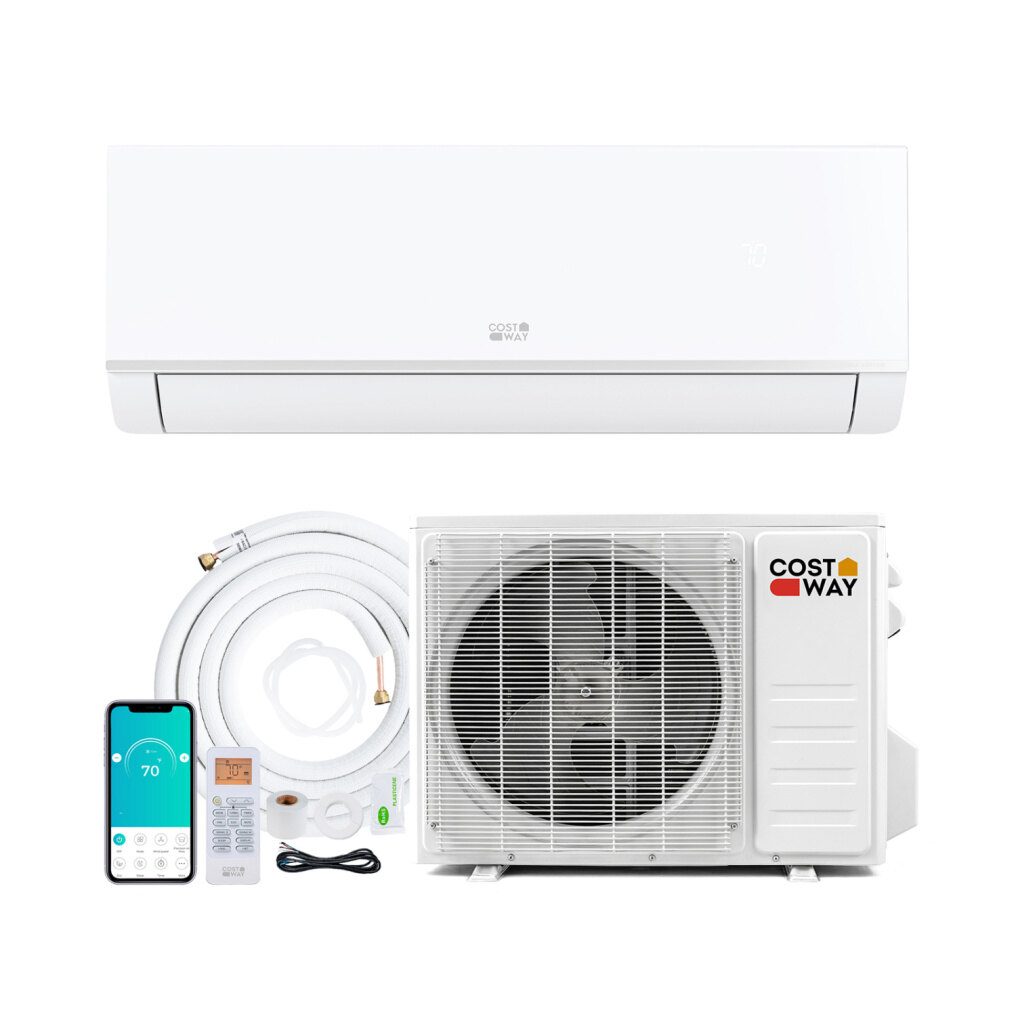

| package includes |
1 x indoor unit ,1 x outdoor unit |
| 1 x 13ft communication wire |
1 x 16.4ft copper connection pipe - liquid pipe |
| 2 x 6.5 ft drain pipe, 2 x drain nozzle |
1 x 16.4ft copper connection pipe - gas pipe |
| 4 x mounting foot pad,1 x insulation foam |
1 x remote control,1 x remote control holder |
| 1 x wall sleeve, 1 x wall cap |
1 x tape, 1 x putty, 1 x user guide |
