| color |
white |
| material |
cold-rolled steel sheet, copper, aluminum |

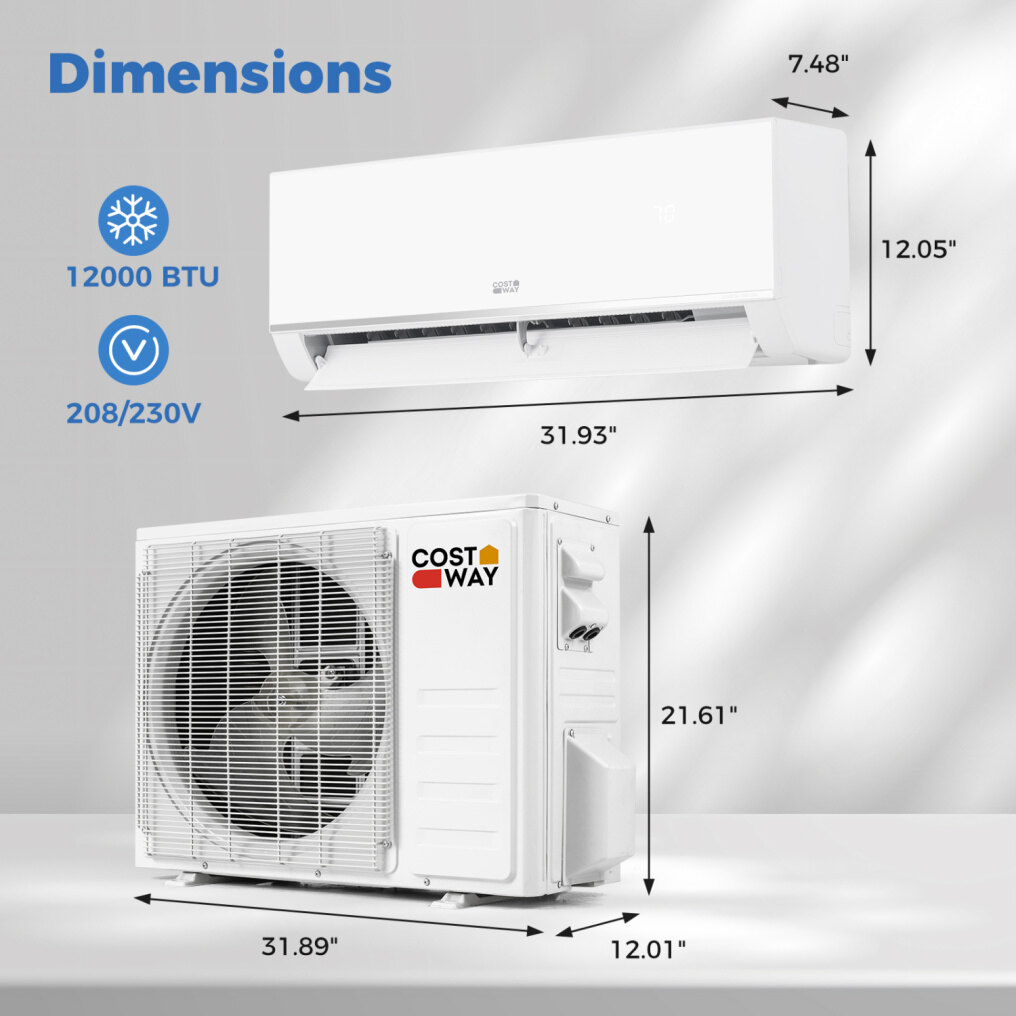

| indoor unit dimensions |
31.93” x 7.48” x 12.05” |
| outdoor unit dimensions |
31.89” x 12.01” x 21.61” |
| voltage |
208/230v |
| frequency |
60hz |
| cooling capacity |
12000 btu |
| heating capacity |
12000 btu |
| rated input consumption (cooling) |
1070w |
| rated input consumption (heating) |
1070w |
| rated current (cooling) |
4.8a |
| rated current (heating) |
3.8a |
| coverage area |
600 sq.ft. |
| maximum air flow volume |
342 cfm |
| dehumidification capacity |
81.2 pints/day |
| temperature setting range |
60℉~88℉ |

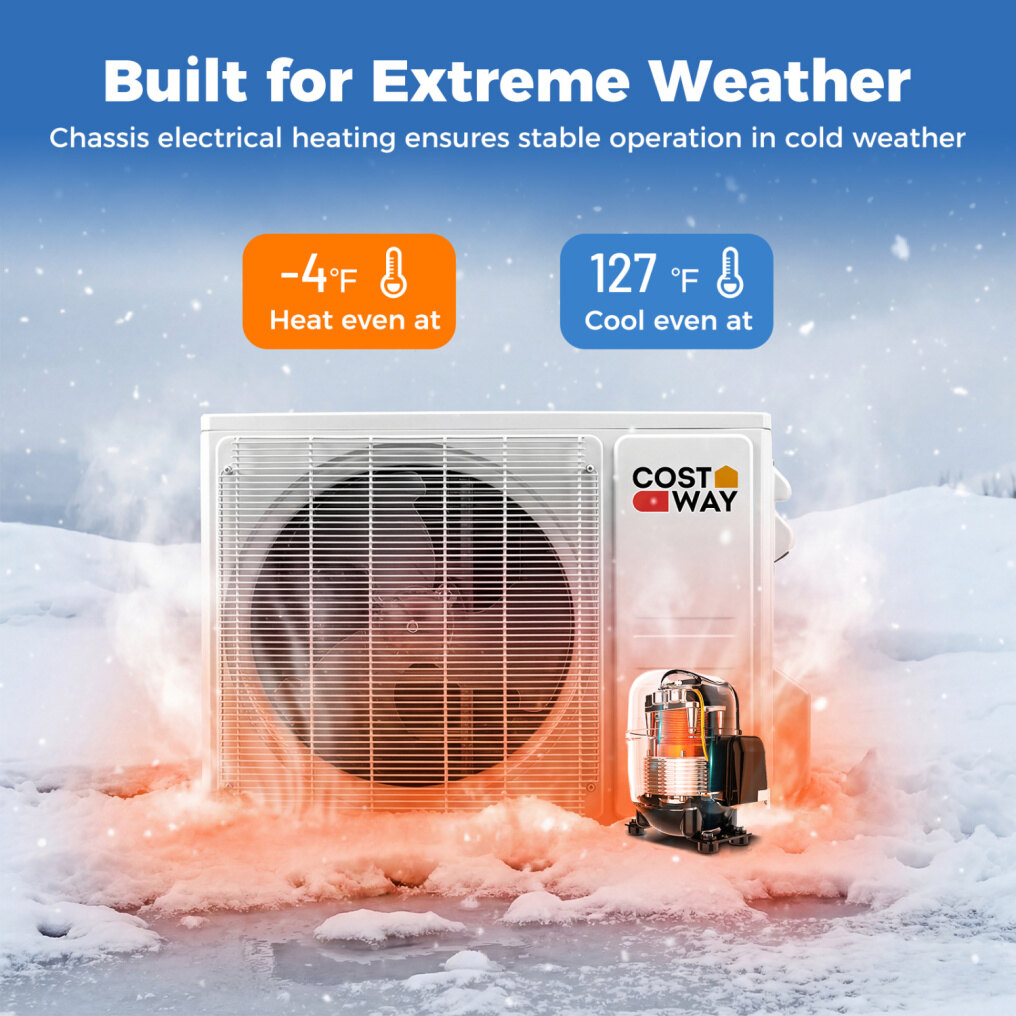

| operating ambient temperature |
-4℉-122℉ |
| max remote control distance |
26 ft |
| refrigerant |
r32 |
| seer2 |
20 |
| hspf2 |
10 |
| indoor noise level |
28 db |
| diameter of gas pipe |
3/8" |
| diameter of liquid pipe |
1/4" |
| net weight of indoor unit |
19.8 lbs |
| net weight of outdoor unit |
55.1 lbs |
| box qty |
2 |
| is assembly required |
yes |

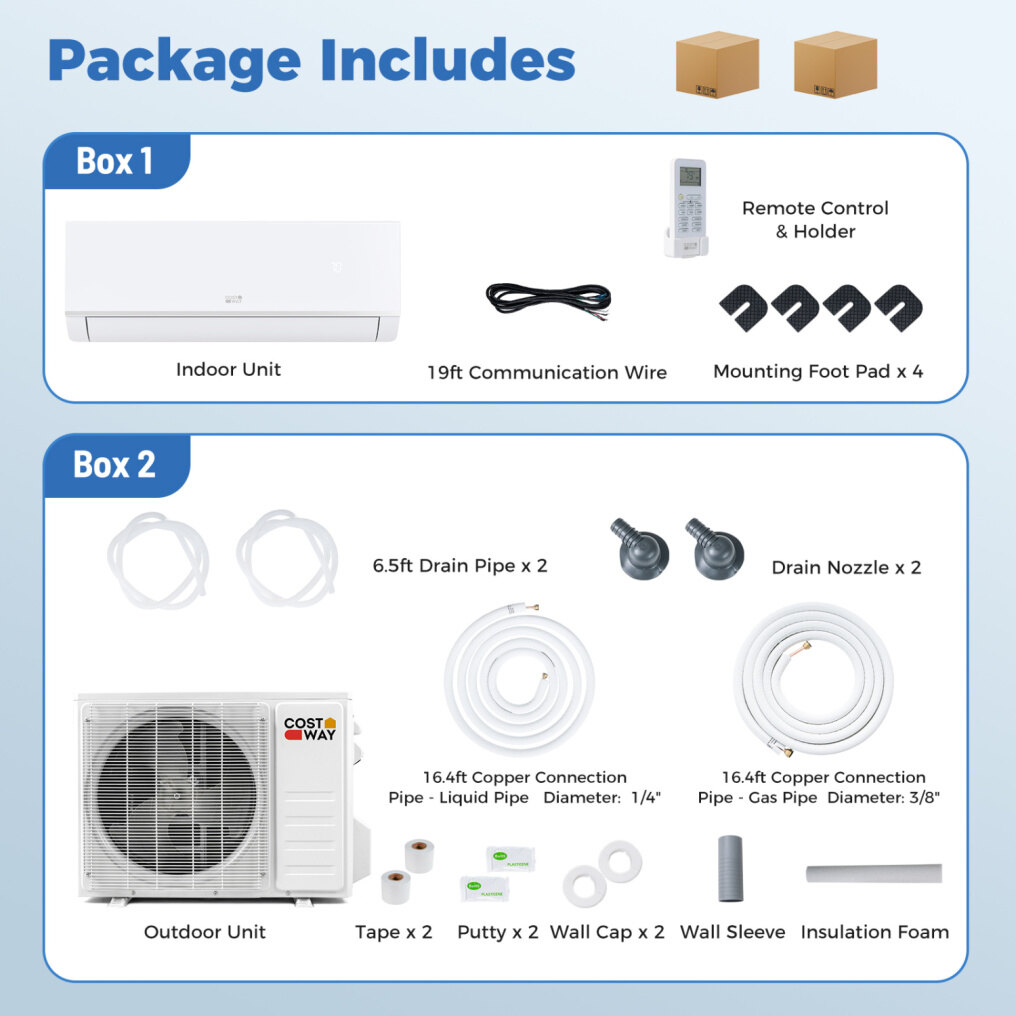

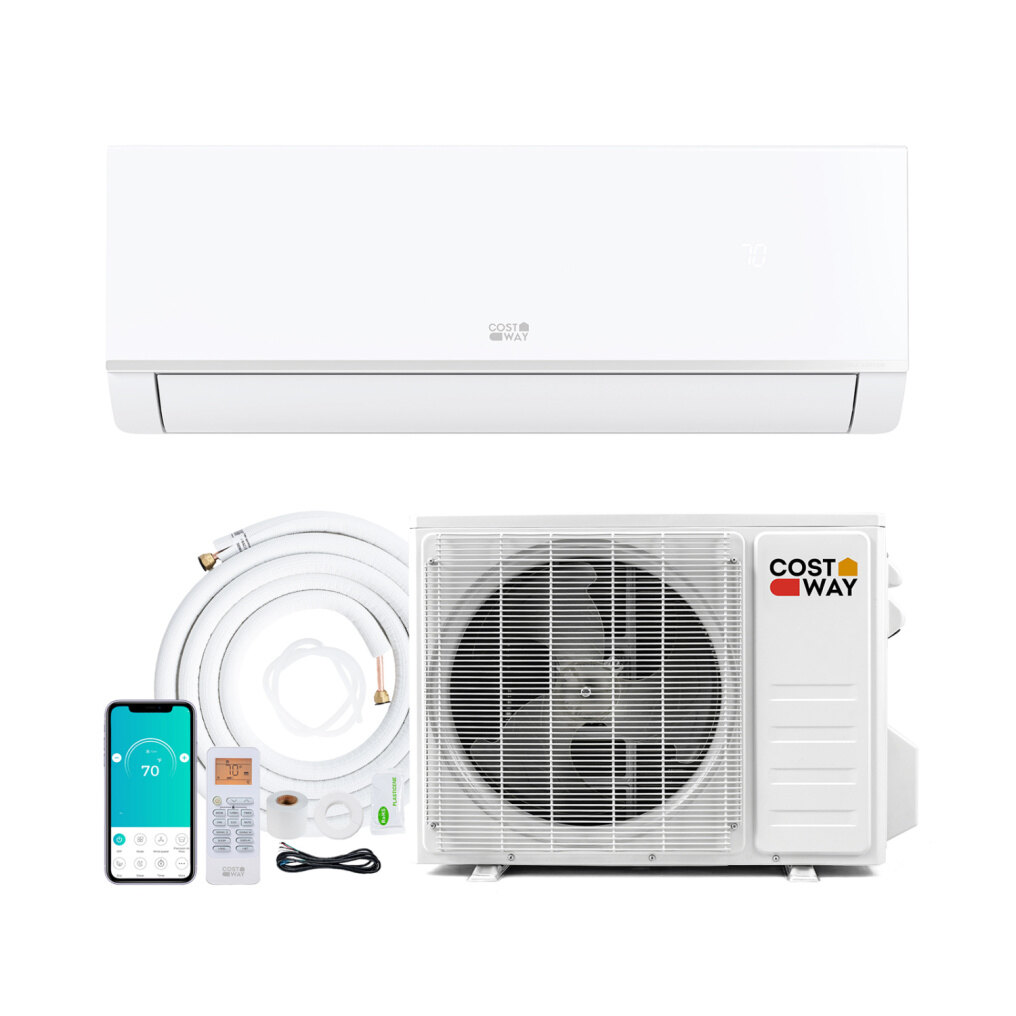

| package includes |
1 x indoor unit ,1 x outdoor unit |
| 1 x 13ft communication wire |
1 x 16.4ft copper connection pipe - liquid pipe |
| 2 x 6.5 ft drain pipe, 2 x drain nozzle |
1 x 16.4ft copper connection pipe - gas pipe |
| 4 x mounting foot pad,1 x insulation foam |
1 x remote control,1 x remote control holder |
| 1 x wall sleeve, 1 x wall cap |
1 x tape, 1 x putty, 1 x user guide |
